The TL866II Plus Programmer Software is one of the most trusted and affordable universal programmer software packages used by electronics technicians, BIOS engineers, laptop repair professionals, and embedded system developers. Designed with high-density SMD technology, it delivers reliable performance while maintaining a simple and user-friendly interface.
Whether you need to program BIOS chips, EEPROMs, Flash memory, NAND chips, or microcontrollers, TL866II Plus Programmer Software provides a stable environment with fast programming speeds and broad device compatibility. The software supports both English and Chinese languages and automatically detects compatible Windows operating systems, including Windows 2000, Windows XP, Windows 2003, Windows 2008, Windows Vista, Windows 7, Windows 8, Windows 10, and both 32-bit and 64-bit Windows editions. DOWNLOAD LINK AT THE END.
RT809H Programmer Latest Version Software

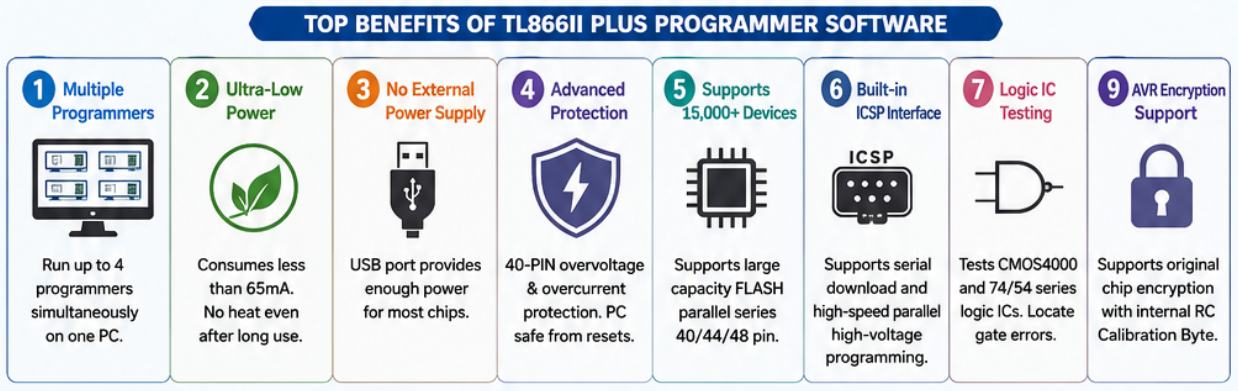

Benefits of TL866II Plus Programmer Software
The TL866II Plus Programmer Software includes several practical features that make it a popular choice among repair technicians and electronics enthusiasts.
1. Supports Multiple Programmers
A single computer can run up to four programmers simultaneously, making it ideal for workshops that handle multiple programming tasks.
2. Ultra-Low Power Consumption
The programmer consumes very little power, allowing it to operate efficiently without excessive heat generation, even during long programming sessions.
3. No External Power Supply Required
The USB connection provides sufficient power for most supported chips, eliminating the need for an additional external power adapter.
4. Advanced Overvoltage Protection
The programmer features 40-pin overvoltage protection with multi-level VCC and VPP overcurrent protection. Even if a short circuit occurs, the connected computer remains protected from unexpected resets.
5. Supports More Than 15,000 Devices
One of the biggest advantages of TL866II Plus Programmer Software is its extensive device library. It supports over 15,000 programmable ICs, including large-capacity parallel and serial Flash memory devices with 40, 44, and 48-pin packages.
6. Built-in ICSP Programming
The integrated ICSP interface allows in-circuit serial programming while also supporting high-speed parallel high-voltage programming for compatible devices.
7. Logic IC Testing
Besides programming chips, the software can test CMOS4000 and 74/54 series logic ICs, helping technicians quickly identify faulty gate circuits.
8. Automatic Serial Number Generation
The software includes a practical automatic serial number generation feature for production environments requiring unique identifiers.
9. AVR Encryption Support
The programmer supports original chip encryption for AVR microcontrollers using internal RC Calibration Byte protection, improving programming security.
High-Speed Programming Performance
The TL866II Plus Programmer Software is optimized with an advanced programming algorithm and a built-in high-performance MCU. It communicates through a USB 2.0 interface with speeds up to 12 Mbps, providing fast and reliable programming for supported devices.
Its efficient communication protocol significantly reduces programming time, making it one of the fastest universal programmers available for BIOS repair and IC programming.
Ultra-Low Power Consumption
Power efficiency is one of the strongest advantages of the TL866II Plus Programmer Software.
The programmer is built using ultra-low-power components and receives power directly through the USB interface. Since it consumes less than 65mA, no external power supply is required for most programming operations.
Even during extended use, the programmer remains cool, improving reliability while supplying stable voltage to programmable devices.
Compact and Portable Design
The TL866II Plus programmer is extremely compact, measuring approximately 10 × 6 × 2.5 cm.
Its lightweight design makes it easy to carry between repair jobs, laboratories, classrooms, or production environments. Because it operates entirely through USB power, portability is further enhanced without requiring additional adapters.
Programmable Power Supply
The programmer offers independently controlled programming voltages for both VCC and VPP.
- Programmable VCC range: 1.8V to 6.5V
- Programmable VPP range: 1.8V to 18V
A multi-stage LC filtering system ensures stable voltage output with minimal fluctuations, improving programming accuracy and chip safety.
Universal 40-Pin Socket Design
The TL866II Plus Programmer Software works with a universal 40-pin socket designed for convenient chip placement.
Users simply insert the IC in the correct orientation using the Pin-1 indicator. Unlike some older programmers, there is no need to rotate or reposition chips during normal programming operations.
Firmware and Software Upgrade Support
The programmer includes built-in firmware that can be updated whenever new device support becomes available.
Users only need to download the latest TL866II Plus Programmer Software update from the manufacturer to access newly supported chips, bug fixes, and performance improvements.
Logic IC Functional Testing
In addition to programming devices, the software supports testing of:
- 54 Series Logic ICs
- 74F Series
- 74LS Series
- 74HC Series
- CMOS4000 Series
These testing capabilities help diagnose faulty integrated circuits by checking different input combinations and logic gate functionality.
Self-Test Function
The programmer features an integrated self-diagnostic system that checks:
- VPP voltage
- VCC voltage
- Ground connections
- I/O pins
- Internal short circuits
- Current protection circuits
This self-testing feature helps verify that both the programmer and connected hardware are functioning correctly before programming begins.
ICSP Programming Interface
The TL866II Plus Programmer Software supports programming through both the standard 40-pin socket and the dedicated ICSP (In-Circuit Serial Programming) interface.
This allows compatible microcontrollers and embedded devices to be programmed without removing them from the target circuit, reducing repair time and simplifying development work.
Easy-to-Use Interface
The software is designed around the familiar Windows interface, making it easy for beginners and professionals alike.
It includes an integrated binary editor that supports several common file formats, including:
- BIN
- HEX
- JED
Users can easily read, edit, modify, verify, and write firmware files directly within the application without requiring separate editing software.
TL866II Plus Programmer vs TL866A/CS
The TL866II Plus Programmer Software introduces several improvements over the older TL866A and TL866CS models.
| Feature | TL866II Plus | TL866A/CS |
|---|---|---|
| ICSP Support | Yes | No |
| Automatic Pin Detection | Yes | No |
| Supported Devices | 15,000+ | 13,000+ |
| NAND Flash Support | Yes | No |
These upgrades make the TL866II Plus a more capable solution for BIOS programming, EEPROM programming, Flash memory repair, and embedded development projects.
Genius G840 USB Programmer Software
Download Link For TL866II Plus Programmer Software:
The TL866II Plus Programmer Software remains one of the best universal programmer solutions for technicians, repair professionals, and electronics enthusiasts. With support for over 15,000 devices, built-in ICSP programming, high-speed USB communication, ultra-low power consumption, advanced protection circuits, and continuous firmware updates, it offers an excellent balance of performance, reliability, and affordability.
Whether you’re repairing laptop BIOS chips, programming microcontrollers, testing logic ICs, or working with Flash memory,the TL866II Plus Programmer Software provides the tools needed for fast, accurate, and dependable programming.
