The CH341A USB Programmer is an affordable USB-based EEPROM and SPI flash programmer widely used to read, write, erase, and back up BIOS firmware chips. It supports many 24, 25, and 93 series EEPROMs, making it one of the most popular tools for BIOS recovery, firmware repair, router flashing, and electronics troubleshooting.
What Is the CH341A USB Programmer?

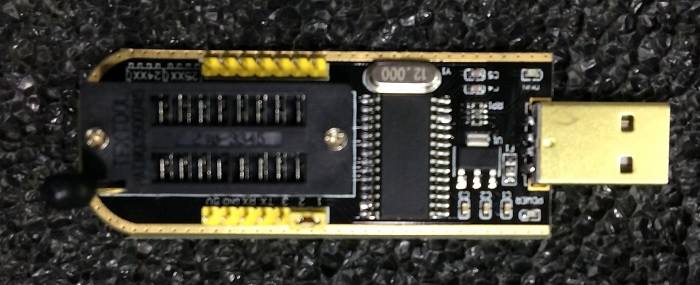

The CH341A USB Programmer is a compact hardware programmer designed to communicate with EEPROM and SPI Flash memory chips through a USB connection. It allows technicians, electronics hobbyists, and repair professionals to read, erase, write, verify, and back up firmware stored on memory chips.
Because of its low cost and wide compatibility, the CH341A USB Programmer has become a standard tool in laptop repair workshops, motherboard servicing, router firmware recovery, TV board repair, and embedded electronics development.
Whether you need to recover a corrupted BIOS, create a firmware backup before updating, or restore a non-booting motherboard, this programmer offers an easy and reliable solution.
Technician Tip: Always make a complete firmware backup before writing a new BIOS image. A verified backup can save hours of troubleshooting if something goes wrong.

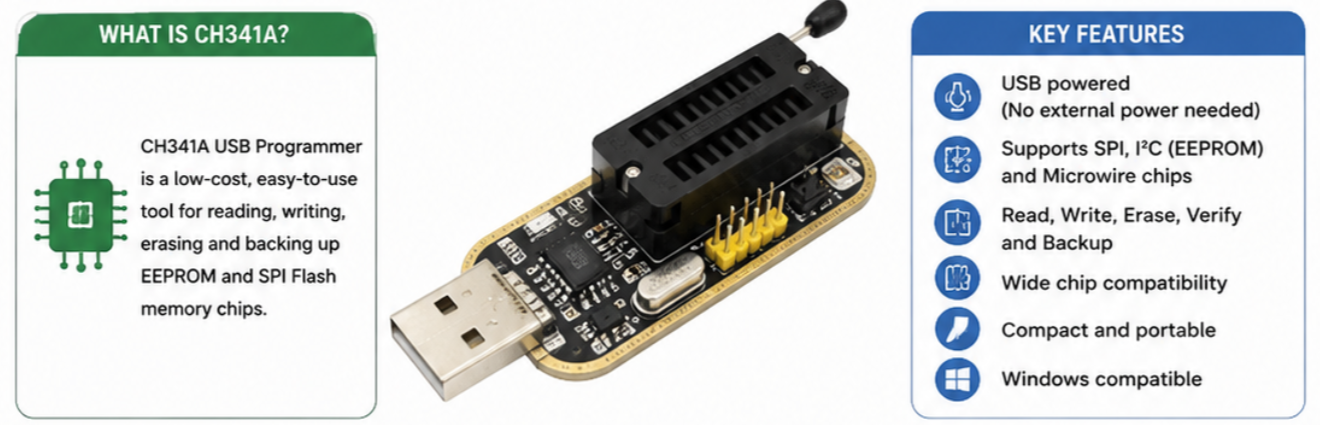

Key Features of the CH341A USB Programmer
The popularity of the CH341A USB Programmer comes from its simplicity and versatility. Some of its key features include:
- USB-powered operation with no external power supply required.
- Supports reading, writing, erasing, and verifying flash memory.
- Compatible with thousands of SPI and EEPROM memory chips.
- Small and portable design for field repairs.
- Low-cost solution for BIOS programming.
- Compatible with Windows and supported by several third-party programming utilities.
- Supports in-circuit programming with an SOIC8 test clip for many boards.
These features make it suitable for both beginners and experienced repair technicians.
Supported Memory Chips
One of the biggest strengths of the CH341A USB Programmer is its broad chip compatibility.
It commonly supports:
| Memory Type | Examples | Typical Use |
|---|---|---|
| SPI Flash | 25 Series | Laptop and desktop BIOS |
| IยฒC EEPROM | 24 Series | Configuration storage |
| Microwire EEPROM | 93 Series | Industrial electronics |
| Serial Flash | Winbond, MXIC, GD, SST | Firmware programming |
Many motherboard manufacturers use Winbond, Macronix, Gigadevice, and MXIC SPI flash chips, all of which are commonly supported by the programmer.
Warning: Always verify that your exact chip model is supported by your programming software before attempting to write firmware.
Common Uses of the CH341A USB Programmer
The CH341A USB Programmer is used in many repair scenarios.
BIOS Recovery
One of the most common applications is restoring a corrupted BIOS after a failed update. By writing a known-good firmware image directly to the BIOS chip, technicians can often recover systems that no longer boot.
Firmware Backup
Before updating BIOS or modifying firmware, creating a complete backup protects the original data and allows recovery if needed.
Motherboard Repair
Repair technicians frequently use the programmer to diagnose BIOS corruption, verify firmware integrity, and restore damaged systems.
Router and Embedded Device Repair
Many routers, DVRs, TV boards, and embedded devices store firmware in SPI flash chips compatible with the programmer.
Learning Embedded Electronics
Students and electronics enthusiasts often use the CH341A USB Programmer to understand flash memory programming, firmware structures, and hardware debugging.
Is CH341A BIOS Programmer Worth Buying
How the CH341A USB Programmer Works

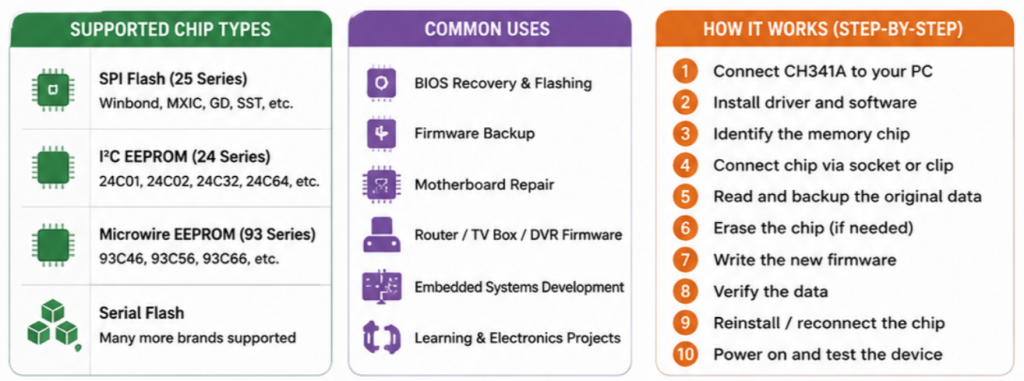

The programming process is straightforward:
- Connect the programmer to your computer.
- Install the required drivers and programming software.
- Identify the flash memory chip.
- Connect the chip using the programmer socket or an SOIC8 clip.
- Read the existing firmware.
- Save a backup copy.
- Erase the chip if necessary.
- Write the new firmware.
- Verify the programmed data.
- Reinstall or reconnect the chip and test the device.
Following this sequence reduces the risk of firmware corruption and improves programming reliability.
Advantages and Limitations
| Advantages | Limitations |
|---|---|
| Affordable | Basic software interface |
| Compact and portable | Some boards require chip removal |
| Supports many EEPROM and SPI chips | Voltage compatibility must be checked |
| Excellent for BIOS recovery | Not suitable for every modern EC controller |
| Ideal for beginners | Quality varies between clone versions |
Understanding these limitations helps avoid common programming mistakes and hardware damage.

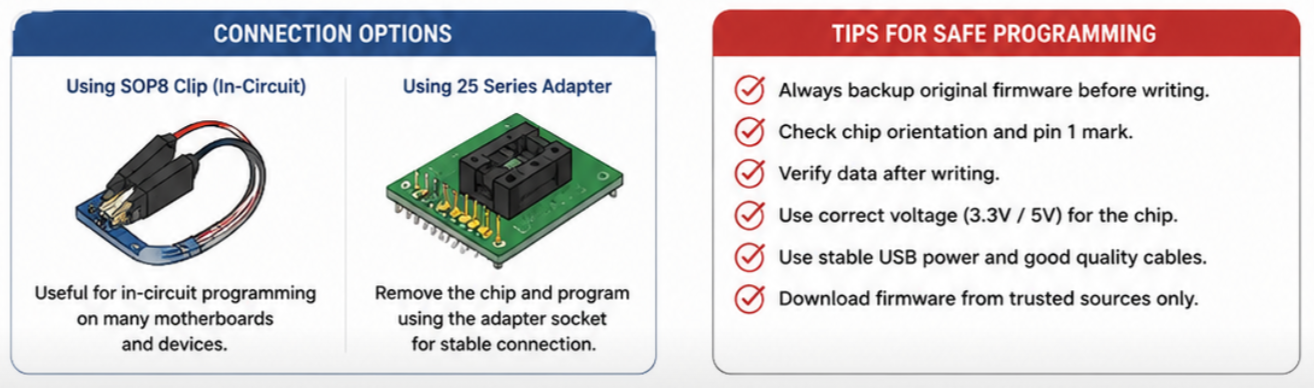

Tips for Safe Programming
To achieve consistent results with the CH341A USB Programmer, follow these best practices:
- Always back up the original firmware before making changes.
- Double-check chip orientation before connecting.
- Verify the programmed data after writing.
- Use stable USB power during programming.
- Ensure the correct voltage is selected for the target chip.
- Download firmware only from trusted sources.
- Keep the chip contacts clean to prevent communication errors.
Common Mistake: Writing firmware intended for a different motherboard revision can cause boot failures or hardware malfunction.
Conclusion
The CH341A USB Programmer remains one of the most practical and affordable tools for BIOS recovery and flash memory programming. Its compatibility with a wide range of SPI flash and EEPROM chips makes it valuable for laptop repair, motherboard servicing, firmware backup, and electronics troubleshooting.
While it has limitations with some modern embedded controllers, it continues to be an excellent choice for technicians, students, and electronics enthusiasts looking for a reliable entry-level programmer. By following proper backup procedures and verifying every write operation, you can safely use the programmer for many common firmware repair tasks.
Frequently Asked Questions
What is the CH341A USB Programmer used for?
It is primarily used to read, write, erase, verify, and back up BIOS firmware and EEPROM memory chips.
Can the CH341A USB Programmer repair a corrupted BIOS?
Yes. If the BIOS chip is functional and the correct firmware is available, it can often restore systems affected by firmware corruption.
Does it support Winbond BIOS chips?
Yes. Most Winbond SPI flash chips are supported by the CH341A USB Programmer.
Can I program a BIOS without removing the chip?
In many cases, yes. An SOIC8 test clip allows in-circuit programming, although some motherboards may require the chip to be removed for reliable communication.
Is the CH341A USB Programmer suitable for beginners?
Yes. Its low cost, simple operation, and wide software support make it a popular choice for users learning BIOS and firmware programming.
Best BIOS Programmers for Laptop Repairing
CH341A USB Programmer For Sale

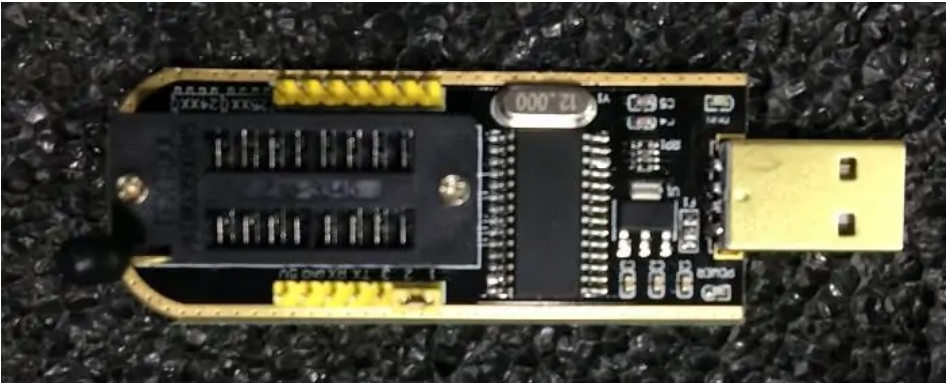

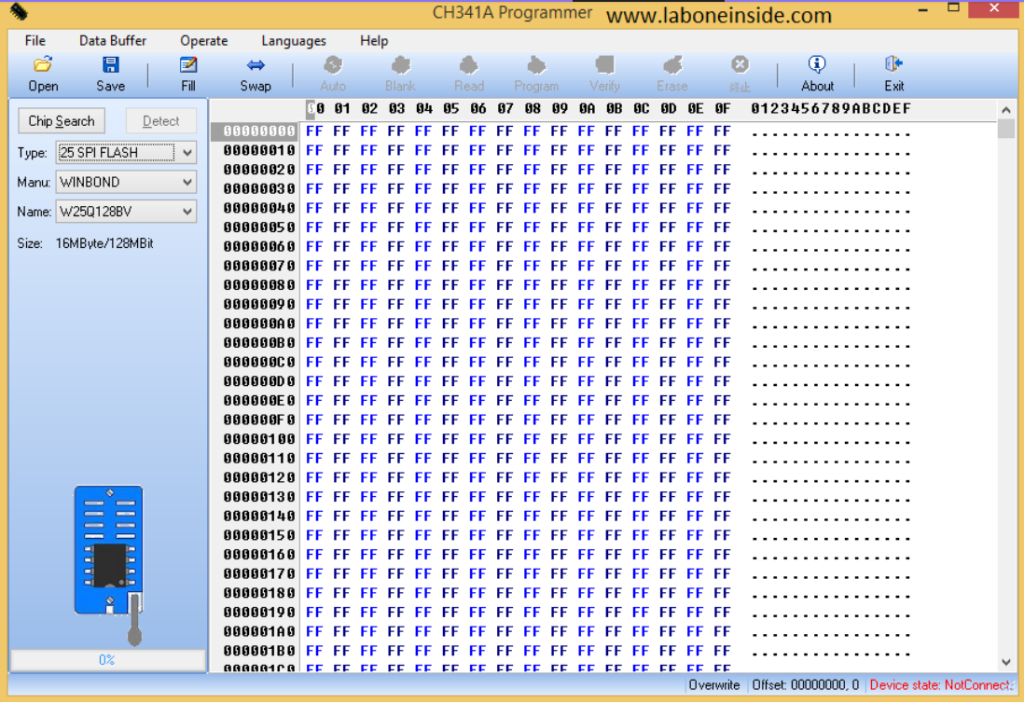

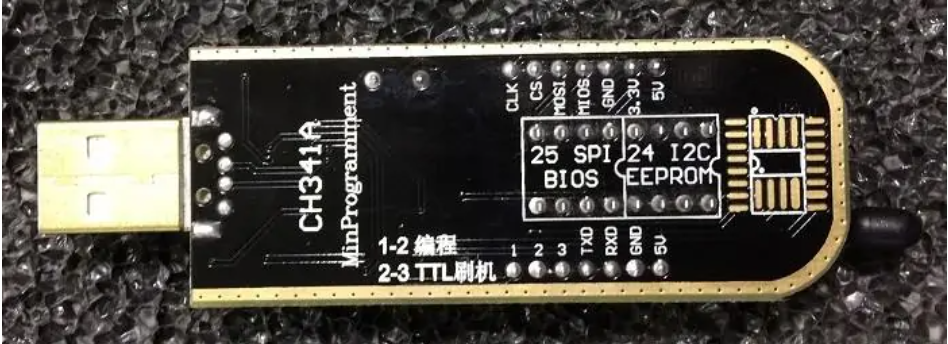

CH341A USB Programmer for sale. This programmer is the smallest programmer that can be used via USB. CH341A USB programmer is not only the smallest but also the cheapest programmer than the other programmers. The best thing about this USB programmer is that it auto-detects the IC number like the other expensive programmers. It programs the whole 24 Series and 25 Series. CH341A USB programmer programs all types of laptops, PCs, and CCTV cameras. It can read, write and erase all the latest laptops. The usage of this programmer is very easy and is explained in the following picture. The delivery package will include a CH341A USB programmer and pinboard.
We also have various kinds of other programmers like RT809F and RT809H. We will give you the best prices ever. The quality of our products is up to the mark. We assure you that you will buy the products again, as we don’t let down our customers.

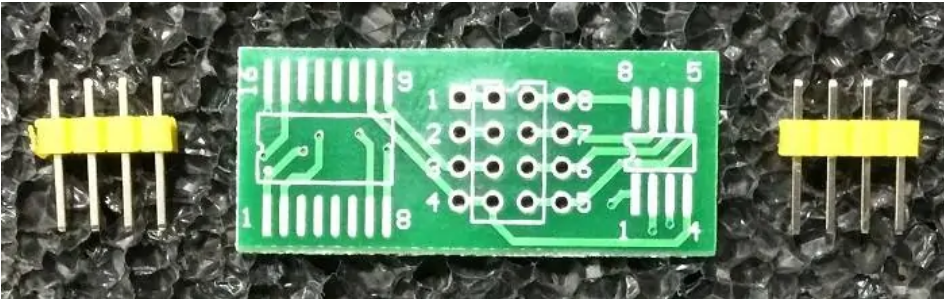

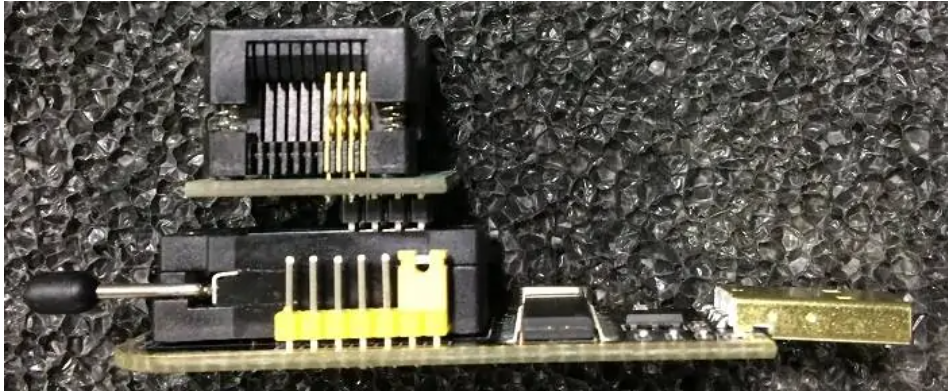

The adapter shown in the picture is not included in the package.
Contact # +923474115447
